Working Principle of Diaphragm Pulse Valves

2024-07-17

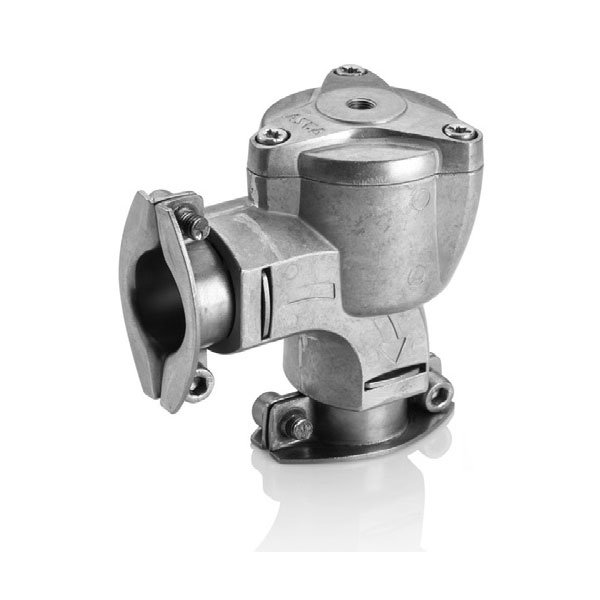

Diaphragm pulse valves are crucial components in industrial dust collection systems, especially in baghouse filters. They control the release of compressed air, which is used to clean the filter bags or cartridges by creating a sudden pulse of air that dislodges the accumulated dust. Here’s a detailed explanation of their working principle:

Components:

1. Valve Body: The main structure that houses the internal components.

2. Diaphragm: A flexible membrane that separates the valve into two chambers.

3. Solenoid Valve: An electromechanical valve that controls the pilot air.

4. Pilot Air Chamber: The chamber on the top side of the diaphragm.

5. Main Air Chamber: The chamber on the bottom side of the diaphragm.

6. Air Inlet/Outlet: Ports for compressed air to enter and exit the valve.

Working Principle:

1. Normal State:

  - In the normal state, the diaphragm closes the main air passage.

  - The pilot valve is closed, keeping the pilot air trapped in the pilot air chamber.

  - The pressure in the pilot air chamber holds the diaphragm in place, sealing the valve.

2. Activation:

  - When a pulse of electrical signal is sent to the solenoid valve, it opens.

  - This opening allows the pilot air to escape from the pilot air chamber to the atmosphere.

3. Pressure Differential:

  - With the pilot air released, the pressure above the diaphragm drops.

  - The higher pressure in the main air chamber below the diaphragm pushes the diaphragm upwards.

4. Pulse of Air:

  - As the diaphragm moves up, it opens the main air passage.

  - Compressed air from the inlet flows rapidly through the outlet, creating a pulse of air.


5. Clearing Dust:

  - This pulse of air is directed into the filter bags or cartridges.

  - The sudden burst of air shakes the filter media, dislodging dust particles which fall into a collection hopper below.

6. Resetting:

  - After the pulse, the electrical signal to the solenoid valve ceases.

  - The solenoid valve closes, and pilot air pressure builds up again in the pilot air chamber.

  - The diaphragm moves back down, closing the main air passage and resetting the valve for the next cycle.

Key Points:

- Rapid Operation: The valve operates very quickly, typically in milliseconds, to provide an effective pulse of air.

- Pressure Control: The pressure differential between the pilot air chamber and the main air chamber is crucial for the operation.

- Durability: Diaphragm materials are chosen for their flexibility and durability under rapid cycling and pressure changes.

Applications:

- Diaphragm pulse valves are primarily used in industrial dust collection systems in various industries like cement, steel, pharmaceuticals, and woodworking.

- They are essential for maintaining the efficiency of filtration systems by ensuring that filters are regularly cleaned and do not become clogged with dust.

Understanding this principle helps in maintaining and troubleshooting diaphragm pulse valves, ensuring the efficient operation of dust collection systems.
