Why Choose a 2-Piece Floating Ball Valve for Your Piping System?

2024-10-26

Introduction: The Importance of Efficient Flow Control

In industrial and residential plumbing systems, valves play a crucial role in regulating the flow of liquids and gases. Among the many types available, the 2-piece floating ball valve stands out for its simple design, reliability, and efficiency. But what exactly makes this type of valve so popular, and how can it benefit your system?

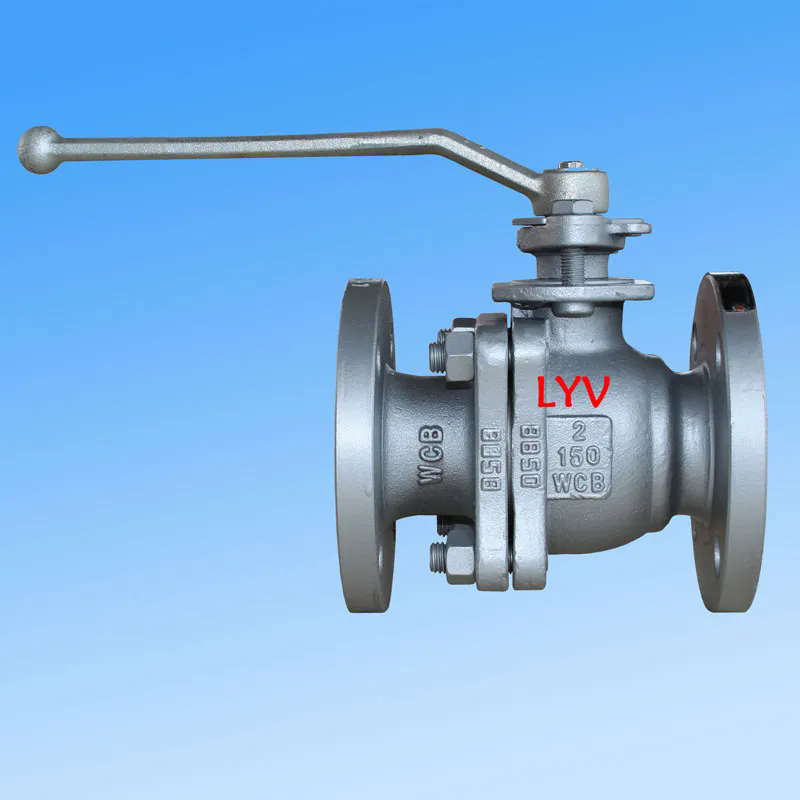

What Is a 2-Piece Floating Ball Valve?

A 2-piece floating ball valve is a type of shut-off valve that uses a spherical ball with a hole (bore) through its center. When the hole aligns with the flow direction, the valve allows full flow; when rotated 90 degrees, it blocks the flow completely.


The 2-piece design means the valve is made up of two separate parts that are connected, allowing for easier maintenance and assembly compared to one-piece valves. The term "floating" refers to how the ball is not fixed—it is held in place by the seats and moves slightly under pressure, enhancing the sealing effect.


How Does a 2-Piece Floating Ball Valve Work?

1. Open Position:

  The ball's bore aligns with the pipe, allowing liquid or gas to pass through freely with minimal pressure drop.



2. Closed Position:

  Rotating the handle 90 degrees causes the ball to block the flow path. The floating mechanism ensures the ball is pressed against the downstream seat, creating a tight seal.


3. Flow Control:

  The valve can also be partially opened to regulate the flow, though it is primarily designed for on/off control rather than throttling.


What Are the Key Benefits of a 2-Piece Floating Ball Valve?


1. Superior Sealing Performance

The floating ball design ensures a tight, leak-proof seal, making it suitable for both liquid and gas applications.


2. Full Bore Design for Maximum Flow

With a full bore (same diameter as the pipeline), there is minimal flow restriction, reducing energy loss and making it ideal for high-flow systems.


3. Durable and Long-Lasting

These valves are typically made from stainless steel, brass, or other corrosion-resistant materials, ensuring durability even in harsh environments.


4. Easy Maintenance

Thanks to its two-piece design, the valve can be disassembled for cleaning or part replacement without needing to replace the entire unit.


5. Versatile Applications

Suitable for a variety of industries, including chemical processing, water treatment, oil and gas, HVAC systems, and more.


Where Can a 2-Piece Floating Ball Valve Be Used?


1. Water Treatment Plants:

  Provides precise control for water flow and ensures leak-proof operation in pipelines.


2. Oil and Gas Industry:

  Handles high-pressure and high-temperature fluids, ensuring reliable flow control.


3. Chemical Processing:

  Resistant to corrosive chemicals, making it ideal for harsh industrial environments.


4. HVAC Systems:

  Regulates coolant and air flow efficiently in heating and cooling systems.


How to Choose the Right 2-Piece Floating Ball Valve?


When selecting a 2-piece floating ball valve, consider the following:

Material: Choose stainless steel or brass for corrosion resistance, especially for outdoor or chemical applications.

Size: Ensure the valve matches the pipe diameter to maintain proper flow and pressure.

Temperature and Pressure Ratings: Verify the valve can withstand the operating conditions of your system.

End Connection: Valves can have threaded, flanged, or welded connections; select the one that fits your system.

Handle Type: Some valves come with lever handles for manual operation, while others have actuators for automated control.


Conclusion: Is a 2-Piece Floating Ball Valve Right for Your System?

The 2-piece floating ball valve offers outstanding flow control, ease of maintenance, and versatility, making it a top choice across various industries. Whether you need precise liquid control, gas handling, or chemical resistance, this valve delivers reliable performance with minimal downtime.


If you are looking for a durable and cost-effective valve that is easy to install and maintain, the 2-piece floating ball valve is a solid investment. Its flexibility, tight sealing, and minimal flow restrictions make it an ideal choice for industrial, commercial, and residential applications alike.
