Waterproof E-Bike Connector: Ensuring Reliable Power and Signal in All Conditions

As electric bicycles (e-bikes) continue to grow in popularity due to their convenience, efficiency, and eco-friendliness, the need for high-quality components becomes increasingly important. One such critical component is the waterproof e-bike connector—a small but essential part that ensures safe and stable electrical connections under all weather conditions.

What Is a Waterproof E-Bike Connector?

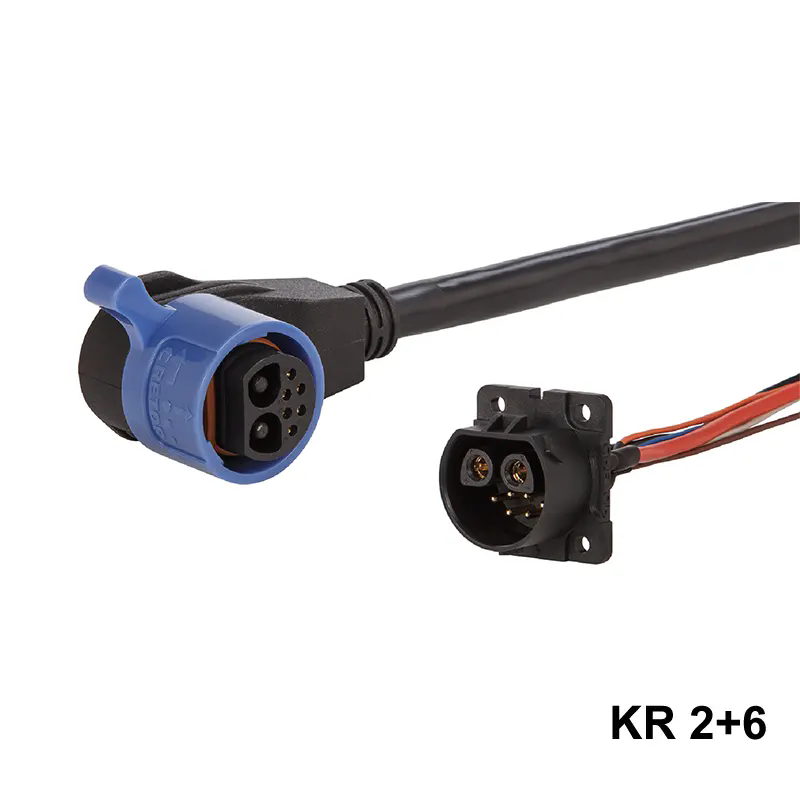

A waterproof e-bike connector is a specially designed electrical connector that joins various components of an e-bike—such as the battery, motor, controller, and display—while protecting the connection points from moisture, dirt, and corrosion. These connectors are typically made from high-grade plastic or rubber with IP-rated sealing (usually IP65 to IP68) to prevent water ingress.

Key Features

1. Water Resistance: The primary feature is its ability to function safely in wet or rainy environments, ensuring no short-circuits or performance failures.

2. Durable Housing: Most connectors are encased in robust materials that resist impact, UV exposure, and extreme temperatures.

3. Secure Locking Mechanism: Many waterproof connectors include locking clips or screw-threaded designs to ensure a tight, vibration-resistant connection.

4. Multi-Pin Options: Available in 2-pin, 3-pin, 5-pin, and more, to accommodate power and signal transmission in a single cable.

Why It Matters

Safety: Prevents electrical shorts caused by water exposure.

Reliability: Maintains consistent performance even in challenging outdoor environments.

Ease of Maintenance: Modular connectors allow for quick repair or replacement without complex rewiring.

Compatibility: Designed to interface seamlessly with common e-bike systems and components.

Common Applications

Battery-to-Controller Connections

Motor-to-Controller Wiring

Display Units and Sensors

Brake and Throttle Signals

Choosing the Right Connector

When selecting a waterproof e-bike connector, consider the following:

IP Rating: Look for at least IP65 for general outdoor use; IP67/IP68 for heavy-duty or submerged environments.

Pin Configuration: Ensure it matches the device's pin layout and current/voltage requirements.

Cable Diameter: Choose a connector compatible with the cable size for a proper seal.

Operating Temperature: Check that the connector operates within your regional temperature range.

Conclusion

A waterproof e-bike connector is more than just a wire link—it’s a critical safeguard for your e-bike's electrical system. With the right connector, riders can enjoy worry-free performance in rain, mud, and rugged terrain. As the e-bike industry continues to evolve, investing in high-quality waterproof connectors ensures durability, safety, and peace of mind.
