When it comes to designing and installing piping systems, versatility and functionality are paramount. Among the various types of pipe fittings used in construction and maintenance, tee pipe fittings stand out as fundamental components that offer both efficiency and adaptability. In this blog, we’ll delve into the world of tee pipe fittings, exploring their functions, types, applications, and why they are indispensable in modern piping systems.
1. What is a Tee Pipe Fitting?

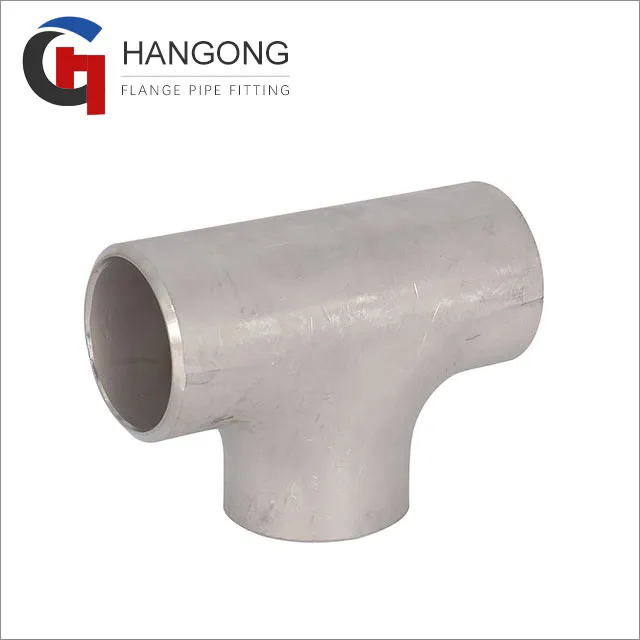

A tee pipe fitting is a three-way connector used to join three sections of pipe at a 90-degree angle. It features a central opening (the "stem" of the tee) and two additional openings extending perpendicular to the central pipe. This configuration allows for the branching of fluid flow, making tee fittings essential for creating complex piping networks and directing flow in multiple directions.
2. Types of Tee Pipe Fittings
Tee pipe fittings come in various designs and materials, each tailored to specific applications and requirements. The main types include:
- Equal Tee (or Standard Tee): An equal tee has three openings of the same diameter, allowing for equal distribution of flow through each branch. It is commonly used in systems where balanced flow is required.
- Reducing Tee: A reducing tee features one opening of a different diameter from the other two. This type of tee is used to connect pipes of varying sizes, allowing for a transition between different pipe diameters.
- Male and Female Tee: Male tee fittings have external threads, while female tee fittings have internal threads. These are used for connecting threaded pipes or other components in a piping system.
- Cross Tee: Similar to the standard tee but with an additional opening, cross tees are used to connect four pipes at a right angle. They are often used in more complex piping arrangements.
- Flanged Tee: Flanged tees feature flanges at each end for bolting onto flanged pipes or components. This design provides a secure and leak-proof connection, suitable for high-pressure applications.
3. Materials Used in Tee Pipe Fittings
Tee pipe fittings are manufactured from a variety of materials, each offering different properties and advantages:
- PVC (Polyvinyl Chloride): PVC tees are lightweight, corrosion-resistant, and suitable for use in residential and commercial plumbing systems. They are often used for water distribution and drainage applications.
- Steel: Steel tees are durable and capable of withstanding high pressure and temperature. They are commonly used in industrial and commercial piping systems where strength and robustness are required.
- Stainless Steel: Stainless steel tees offer excellent resistance to corrosion and high temperatures, making them ideal for use in chemical processing, food and beverage industries, and other demanding environments.
- Brass: Brass tees are known for their strength and corrosion resistance. They are often used in plumbing, heating, and gas distribution systems.
- Copper: Copper tees are used in plumbing systems for their durability and resistance to corrosion. They are commonly used in water supply and HVAC systems.
4. Applications of Tee Pipe Fittings
Tee pipe fittings have a wide range of applications across various industries and systems:
- Plumbing Systems: In residential and commercial plumbing, tee fittings are used to create branch lines for water supply, drainage, and waste systems. They enable the distribution of water to different areas of a building.
- Heating Systems: In heating systems, tee fittings are used to connect pipes and distribute hot water or steam to radiators and other heating elements. They are essential for efficient heating and temperature control.
- Industrial Processes: Tee fittings are used in industrial processes to manage the flow of fluids and gases in manufacturing and processing systems. They facilitate the branching and distribution of materials in pipelines.
- HVAC Systems: In heating, ventilation, and air conditioning (HVAC) systems, tee fittings are used to connect ducts and distribute air throughout a building. They play a crucial role in maintaining indoor air quality and temperature control.
- Agricultural Irrigation: Tee fittings are used in irrigation systems to create branch lines and distribute water to different areas of a field or garden. They are essential for efficient water management in agriculture.
- Oil and Gas Industry: Tee fittings are used in the oil and gas industry to connect pipelines and manage the flow of fluids and gases in extraction and transportation systems. They are designed to withstand high pressures and corrosive environments.
5. Choosing the Right Tee Pipe Fitting
Selecting the appropriate tee pipe fitting for your application involves considering several factors:
- Pipe Size and Type: Ensure that the tee fitting matches the diameter and type of the pipes in your system. For reducing tees, verify the sizes of both the main and branch pipes.
- Material Compatibility: Choose a material that is compatible with the fluids or gases being transported and the operating conditions of your system. Consider factors such as temperature, pressure, and corrosion resistance.
- Pressure and Temperature Ratings: Verify that the tee fitting can handle the pressure and temperature requirements of your application. Check the manufacturer's specifications for pressure and temperature ratings.
- Installation Requirements: Consider the installation method and requirements for the fitting, such as threaded, welded, or flanged connections. Ensure that the fitting can be properly installed and sealed in your system.
- Quality and Standards: Opt for fittings that meet industry standards and quality certifications to ensure reliability and performance. Look for fittings from reputable manufacturers with a track record of producing high-quality components.
6. Maintenance and Care
To ensure the longevity and performance of tee pipe fittings:
- Regular Inspection: Periodically inspect fittings for signs of wear, corrosion, or leakage. Address any issues promptly to prevent system failures.
- Proper Installation: Follow installation guidelines and best practices to ensure a secure and leak-proof connection. Use appropriate sealing materials and techniques.
- Cleaning and Maintenance: Clean fittings as needed to remove debris or buildup that could affect performance. Ensure that fittings are free from blockages and obstructions.
In conclusion, tee pipe fittings are essential components in a wide range of piping systems, offering versatility, efficiency, and functionality. By understanding their types, materials, and applications, you can select the right fittings for your needs and ensure the effective and reliable operation of your piping network. Whether you’re working on a residential plumbing project or an industrial process, tee fittings play a crucial role in achieving seamless and efficient fluid distribution.
