Key Features of Double Speed Radial Piston Motor

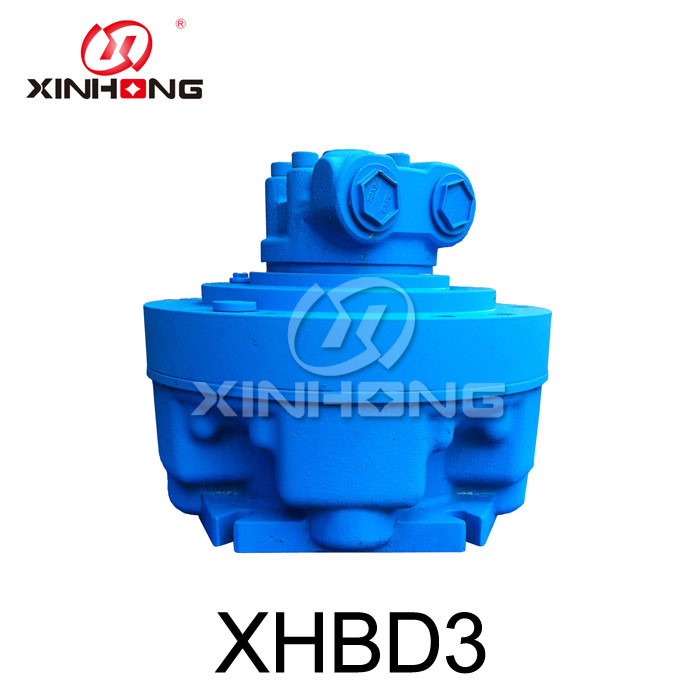

A double speed radial piston motor is a type of hydraulic motor known for its efficiency, reliability, and ability to produce high torque at low speeds. It is designed with multiple pistons arranged radially around a central cam. These pistons work in pairs to provide smooth and powerful motion. Here are some key features and benefits of double speed radial piston motors:

Key Features:

1. Radial Piston Design:

  - The pistons are arranged radially around a central cam.

  - This design allows for a compact and robust motor.

2. Double Speed Capability:

  - The motor can operate at two different speeds.

  - This is typically achieved by varying the displacement of the motor, allowing for both high-speed and low-speed operation.

3. High Torque Output:

  - Provides high torque at low speeds, which is beneficial for heavy-duty applications.

4. Efficiency:

  - High mechanical and volumetric efficiency.

  - Low internal leakage.

5. Smooth Operation:

  - The radial arrangement of the pistons ensures smooth and balanced operation, reducing vibration and noise.

Applications:

- Industrial Machinery:

 - Used in heavy machinery such as presses, conveyors, and mixers.

- Marine Applications:

 - Ideal for winches, capstans, and propulsion systems.

- Mobile Equipment:

 - Used in construction equipment like excavators, loaders, and cranes.

- Mining:

 - Suitable for equipment like drills and shuttle cars.

Benefits:

1. Versatility:

  - Can be used in a wide range of applications due to its ability to operate at two different speeds.

2. Durability:

  - Designed to withstand harsh environments and heavy loads.

3. Precision Control:

  - Provides precise control over speed and torque, enhancing operational efficiency.

4. Energy Efficiency:

  - Reduces energy consumption due to high efficiency.

Working Principle:

1. Hydraulic Fluid Input:

  - Hydraulic fluid enters the motor and applies pressure to the pistons.

2. Piston Movement:

  - The pressurized fluid forces the pistons to move radially.

3. Cam Interaction:

  - The pistons push against a central cam, causing it to rotate.

4. Output Shaft Rotation:

  - The rotation of the cam is transferred to the output shaft, generating mechanical power.

In summary, double speed radial piston motors are highly efficient hydraulic motors that offer the flexibility of operating at two different speeds. They are widely used in industrial, marine, and mobile applications due to their high torque output, smooth operation, and durability.
