Features of Trolley Type Shot Blast Machine

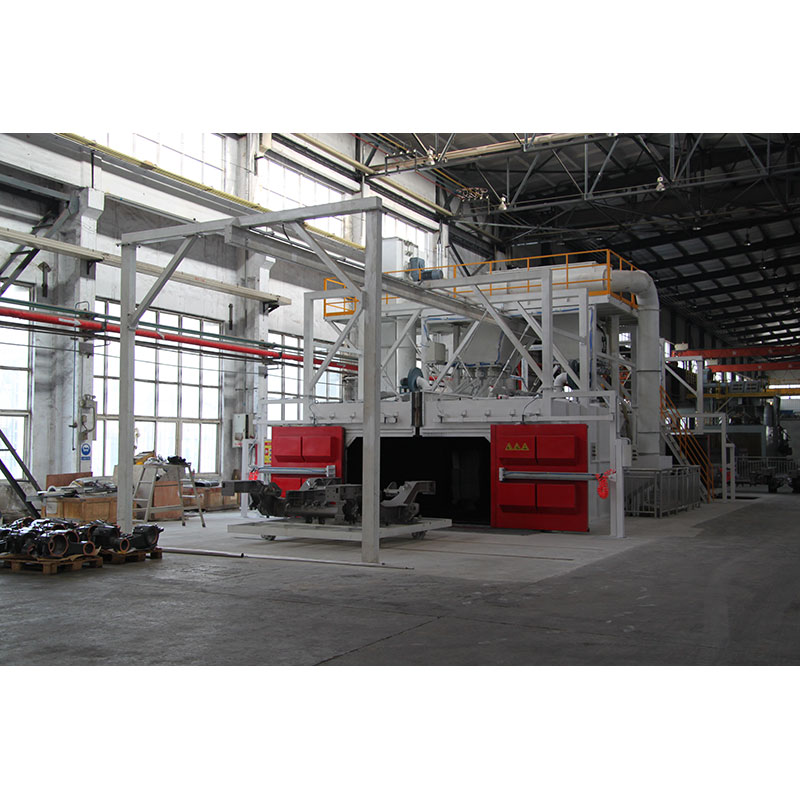

A trolley type shot blast machine is a specialized industrial equipment used for surface cleaning, preparation, and finishing of workpieces by propelling abrasive materials at high velocity. This process, known as shot blasting or abrasive blasting, removes contaminants, scales, rust, and old coatings from metal surfaces, preparing them for further processing or finishing. Here’s an overview of trolley type shot blast machines, their features, operation, applications, and benefits:

Features of Trolley Type Shot Blast Machine:

1. Trolley System:

  - Workpieces are loaded onto trolleys or carts, which are then moved through the shot blasting chamber.

  - Trolleys can be manual, motorized, or automated, depending on the size and weight of the workpieces and the desired throughput.

2. Blasting Chamber:

  - Contains a turbine or wheel assembly that propels abrasive media (such as steel shot, grit, or sand) at high speeds onto the workpiece surfaces.

  - Internal liners and wear-resistant materials in the chamber prolong equipment life and maintain efficiency.

3. Abrasive Media Recycling:

  - Abrasive media rebounds off the workpiece and is collected, cleaned, and recycled within the machine for continuous use.

  - This recycling system reduces operating costs and minimizes environmental impact by reducing waste.

4. Dust Collection System:

  - Incorporates a dust collector to capture and remove airborne particles and abrasive dust generated during the blasting process.

  - Ensures a clean working environment and operator safety.

5. Control System:

  - Features PLC (Programmable Logic Controller) or computerized controls for setting blasting parameters, monitoring operation, and optimizing efficiency.

  - Allows for customization of blasting intensity, duration, and speed based on workpiece specifications.

6. Versatile Applications:

  - Suitable for cleaning, descaling, deburring, and preparing surfaces of various materials such as steel, aluminum, cast iron, and alloys.

  - Used in industries ranging from automotive and aerospace to foundries, shipbuilding, and metal fabrication.

Operation of Trolley Type Shot Blast Machine:

1. Loading and Unloading:

  - Workpieces are loaded onto trolleys outside the blasting chamber, ensuring a continuous flow of parts through the system.

  - Automated systems may integrate with conveyors for seamless loading and unloading.

2. Blasting Process:

  - Trolleys enter the blasting chamber where abrasive media is propelled onto the surfaces of the workpieces at high velocities.

  - The impact of the abrasive removes contaminants, scale, rust, and old coatings from the metal surfaces.

3. Surface Cleaning and Preparation:

  - Achieves surface roughening for improved adhesion of coatings, painting, or subsequent manufacturing processes.

  - Enhances surface finish quality and uniformity across all treated parts.

4. Abrasive Media Control:

  - Adjustments in abrasive media type, size, and velocity cater to different surface profiles and cleaning requirements.

  - Ensures consistent results and minimizes material loss during operation.

Applications and Benefits:

1. Surface Preparation:

  - Prepares metal surfaces for welding, painting, plating, or other finishing processes by removing contaminants and creating a uniform profile.

2. Maintenance and Refurbishment:

  - Restores worn or corroded parts, extending their service life and maintaining operational efficiency in machinery and equipment.

3. Batch Processing:

  - Handles large volumes of parts or components simultaneously, optimizing production throughput and reducing lead times.

4. Quality Assurance:

  - Ensures consistent surface cleanliness and finish quality, meeting stringent industry standards and specifications.

5. Cost Efficiency:

  - Reduces labor costs and material waste by automating surface preparation tasks, improving productivity and operational efficiency.

Considerations for Selection:

1. Workpiece Size and Weight:

  - Choose a machine size and configuration that accommodates the dimensions and weight of your workpieces.

2. Abrasive Media Requirements:

  - Select the appropriate type and size of abrasive media based on material compatibility, surface finish requirements, and environmental considerations.

3. Environmental and Safety Standards:

  - Ensure compliance with local regulations for dust emissions, noise levels, and occupational safety measures.

4. Maintenance and Support:

  - Evaluate the availability of spare parts, technical support, and maintenance services from the manufacturer or supplier.

Trolley type shot blast machines are essential for achieving clean, prepared surfaces in metalworking industries, contributing to improved product quality, efficiency, and cost-effectiveness in manufacturing processes.
