Features associated with a cylinder stone washer

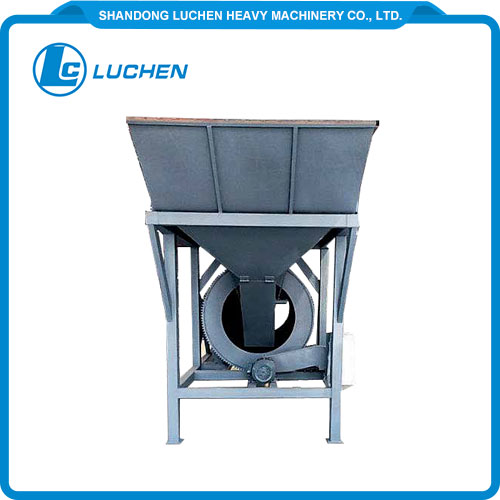

A cylinder stone washer, also known as a rotary drum stone washer or cylinder stone washing machine, is a type of equipment used in the mining and aggregates industry for washing and cleaning crushed stone or gravel. It employs the rotation of a cylindrical drum to facilitate the washing process, removing impurities, fines, and clay particles from the material. Here are the key components and features associated with a cylinder stone washer:

1. Cylindrical Drum:

  - The main component of the cylinder stone washer is a rotating cylindrical drum. The drum is typically perforated or fitted with baffles, and it serves as the container for holding and washing the material.

2. Inlet Chute:

  - The inlet chute is where the raw material, such as crushed stone or gravel, is fed into the cylinder stone washer. It ensures a controlled and consistent flow of material into the washing drum.

3. Water Inlet System:

  - A water inlet system supplies water to the cylinder stone washer. The water is used to facilitate the washing process by creating a slurry that helps in removing impurities and clay particles from the material.

4. Rotation Mechanism:

  - The drum rotates on its axis, imparting a tumbling or cascading motion to the material inside. This rotation is often achieved through a motor-driven mechanism connected to the drum.

5. Agitators or Paddles (Optional):

  - Some cylinder stone washers may have internal agitators or paddles that help lift and move the material inside the drum, enhancing the washing and scrubbing action.

6. Water Spray Nozzles:

  - Water spray nozzles are strategically placed inside the drum to introduce water onto the material. The spray helps in dislodging and washing away fines and impurities.

7. Discharge Chute:

  - The discharge chute allows the washed and cleaned material to exit the cylinder stone washer. The discharged material may be directed to further processing equipment or stockpiles.

8. Support Structure:

  - The entire assembly is mounted on a sturdy support structure to ensure stability during operation.

9. Adjustable Settings:

  - Cylinder stone washers often come with adjustable settings to control factors such as the rotation speed, water flow rate, and other parameters. These settings allow operators to optimize the washing process for different materials.

The cylinder stone washer is particularly effective in washing and cleaning materials with high clay content or materials prone to agglomeration. The tumbling action of the rotating drum, combined with water, helps break down and remove impurities, resulting in cleaner and more marketable aggregates. This type of equipment is commonly used in sand and gravel plants, as well as in the production of high-quality aggregates for concrete and construction applications.
