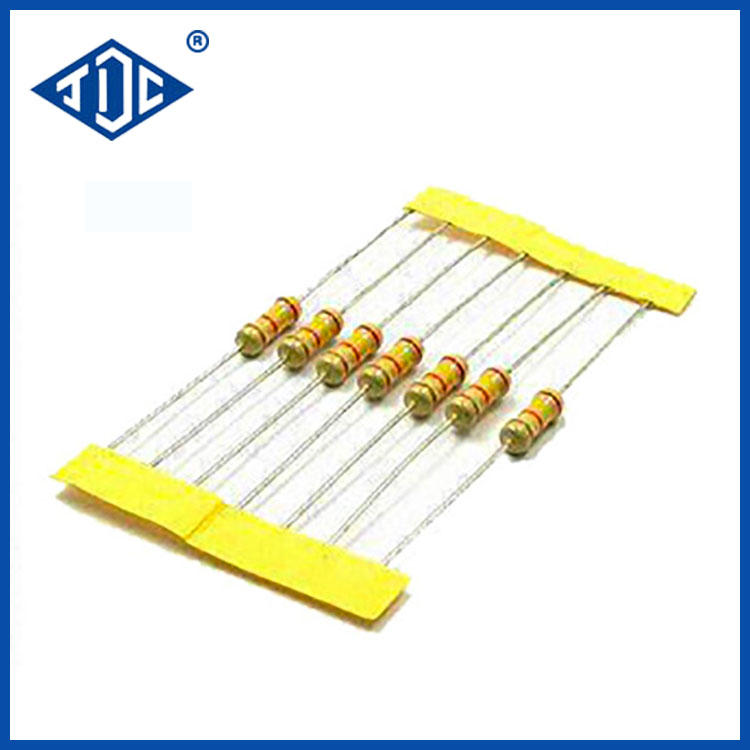

Features and applications of carbon film fixed resistors

A carbon film fixed resistor is an electronic component used in electrical circuits to limit or control the flow of electric current by introducing electrical resistance. These resistors are fixed in value, meaning their resistance remains constant and cannot be adjusted by the user. Carbon film resistors are among the most common types of fixed resistors, and they are characterized by the use of a carbon film as the resistive element. Here are some key features and applications of carbon film fixed resistors:

Key Features:

1. Carbon Film: The resistive element in a carbon film fixed resistor consists of a thin layer of carbon film deposited onto a ceramic or fiberglass substrate. This carbon film provides the resistance.

2. Fixed Resistance Value: Carbon film resistors have a predetermined resistance value, which is determined during the manufacturing process and marked with color bands or a numeric code. This value cannot be adjusted or changed by the user.

3. Tolerance: Like other resistors, carbon film fixed resistors have a specified tolerance that indicates the range within which the actual resistance may vary from the specified value. Common tolerances for carbon film resistors are ±5% and ±1%.

4. Stability: Carbon film resistors typically offer good long-term stability and reliability, with minimal drift in their resistance value over time.

5. Low Noise: They have low electrical noise characteristics, making them suitable for applications where noise should be minimized, such as in audio circuits.

6. Power Rating: Carbon film resistors are available in various power ratings, which determine their ability to dissipate heat without overheating.

7. Temperature Coefficient: These resistors may have a relatively low temperature coefficient, meaning their resistance value changes only slightly with temperature variations.

Applications:

1. Voltage Divider Circuits: Carbon film fixed resistors are commonly used in voltage divider circuits to provide specific voltage levels for various electronic components.

2. Signal Conditioning: They are used in signal conditioning and amplification circuits to set specific gain values and control signal levels.

3. Filter Circuits: Carbon film resistors are employed in filter circuits to determine the cutoff frequencies and shape the filter response.

4. Biasing and Bias Networks: They are used in biasing networks to establish the operating point of transistors and other semiconductor devices.

5. Feedback Networks: Carbon film resistors can be found in feedback networks in operational amplifiers (op-amps) and other feedback-based circuits.

6. Audio Equipment: They are suitable for use in audio equipment, including preamplifiers, amplifiers, and equalization circuits, where low noise is important.

7. General Circuit Protection: Carbon film resistors serve as protection devices in circuits to limit current and prevent overloading of components.

8. Industrial and Consumer Electronics: They are used in various electronic devices, including power supplies, control systems, displays, and consumer electronics.

Carbon film fixed resistors are readily available, cost-effective, and well-suited for a wide range of applications where precise resistance values are required, and the resistance value should remain stable over time. They are a fundamental component in electrical and electronic design, providing control and functionality in various circuit configurations.
