Detailed Overview of Plastics PEEK sheet 30% Glass Fiber

2024-07-31

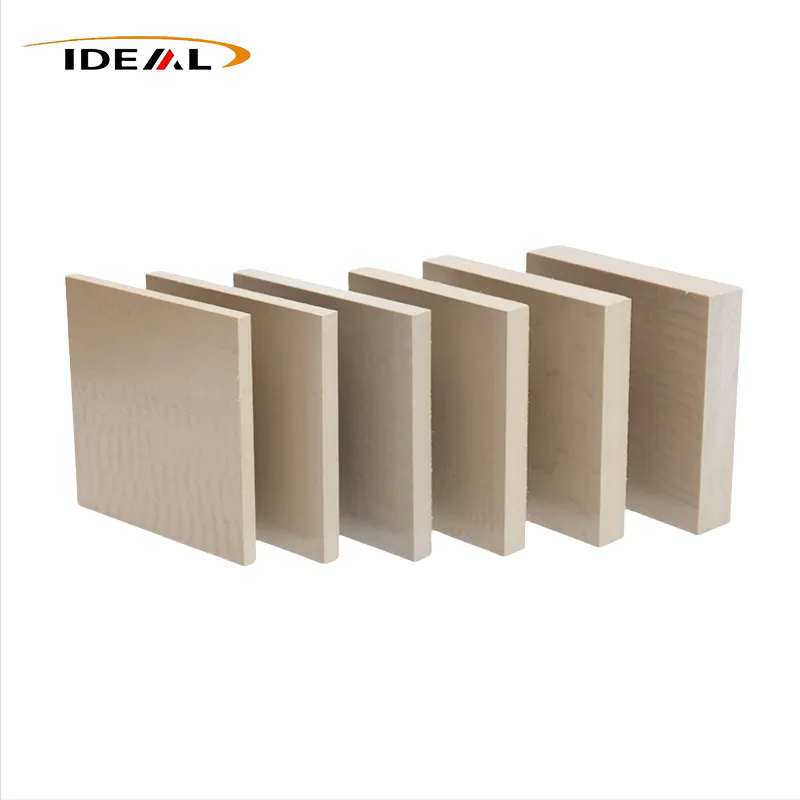

PEEK (Polyether Ether Ketone) sheets with 30% glass fiber reinforcement are advanced engineering materials known for their high-performance characteristics. PEEK is a high-temperature, high-strength thermoplastic, and the addition of glass fiber enhances its mechanical properties. Here’s a detailed overview:

Key Features

1. Material Composition:

  - Base Polymer: PEEK is a high-performance thermoplastic polymer known for its exceptional thermal stability, chemical resistance, and mechanical strength.

  - Glass Fiber Reinforcement: The inclusion of 30% glass fiber enhances the material's rigidity, strength, and dimensional stability.

2. Physical Properties:

  - Temperature Resistance: PEEK can withstand high temperatures, typically up to 250°C (482°F), without significant degradation.

  - Mechanical Strength: The glass fiber reinforcement significantly increases the tensile strength, stiffness, and impact resistance of the material.

  - Dimensional Stability: The glass fibers reduce thermal expansion and improve the dimensional stability of the PEEK sheet.

3. Chemical Resistance:

  - High Resistance: PEEK is highly resistant to a wide range of chemicals, including acids, bases, and solvents, making it suitable for harsh environments.

4. Electrical Properties:

  - Insulating Properties: PEEK offers excellent electrical insulation, making it useful in electronic and electrical applications.

5. Surface Finish:

  - Smooth Surface: Typically available with a smooth surface finish, which can be beneficial for applications requiring precise tolerances and low friction.

Benefits

1. Enhanced Mechanical Properties:

  - Increased Strength: Glass fiber reinforcement provides higher tensile strength and load-bearing capacity.

  - Improved Stiffness: The addition of glass fiber enhances the stiffness of the PEEK sheet, making it suitable for demanding structural applications.

2. Thermal and Chemical Stability:

  - High-Temperature Performance: Maintains its properties at high temperatures, suitable for applications involving heat exposure.

  - Chemical Resistance: Effective in environments where exposure to corrosive chemicals is a concern.

3. Dimensional Stability:

  - Reduced Warping: The glass fiber reinforcement helps maintain dimensional stability, reducing the risk of warping or distortion.

4. Durability:

  - Long-Lasting: Provides long-term durability and resistance to wear and tear, extending the lifespan of components made from this material.

Applications

1. Aerospace:

  - Structural Components: Used for high-performance structural components due to its strength, rigidity, and thermal stability.

2. Automotive:

  - Engine Parts: Suitable for high-temperature engine parts and components requiring high mechanical strength and durability.

3. Medical Devices:

  - Implants and Instruments: Utilized in medical devices and implants where chemical resistance and high strength are required.

4. Industrial Equipment:

  - Machinery Parts: Used in industrial machinery components, such as bearings and gears, due to its wear resistance and mechanical strength.

5. Electronics:

  - Insulation and Structural Parts: Applied in electronic devices for its electrical insulating properties and stability.

Considerations

1. Cost:

  - High Expense: PEEK with glass fiber reinforcement can be relatively expensive compared to other materials. It is important to weigh the cost against the performance benefits for specific applications.

2. Machining:

  - Processing: PEEK sheets can be challenging to machine due to their hardness. Specialized equipment and tools may be required for cutting and shaping.

3. Availability:

  - Material Sourcing: Ensure reliable sourcing of PEEK sheets with the specified glass fiber content from reputable suppliers.

4. Handling:

  - Careful Handling: Glass fiber-reinforced PEEK can be brittle and prone to chipping or cracking if not handled properly during processing and installation.

PEEK sheets with 30% glass fiber reinforcement offer exceptional strength, rigidity, and durability for demanding applications. Their high-performance characteristics make them suitable for use in extreme environments where other materials may not perform as well.
