Components of a separate vacuum hopper loader

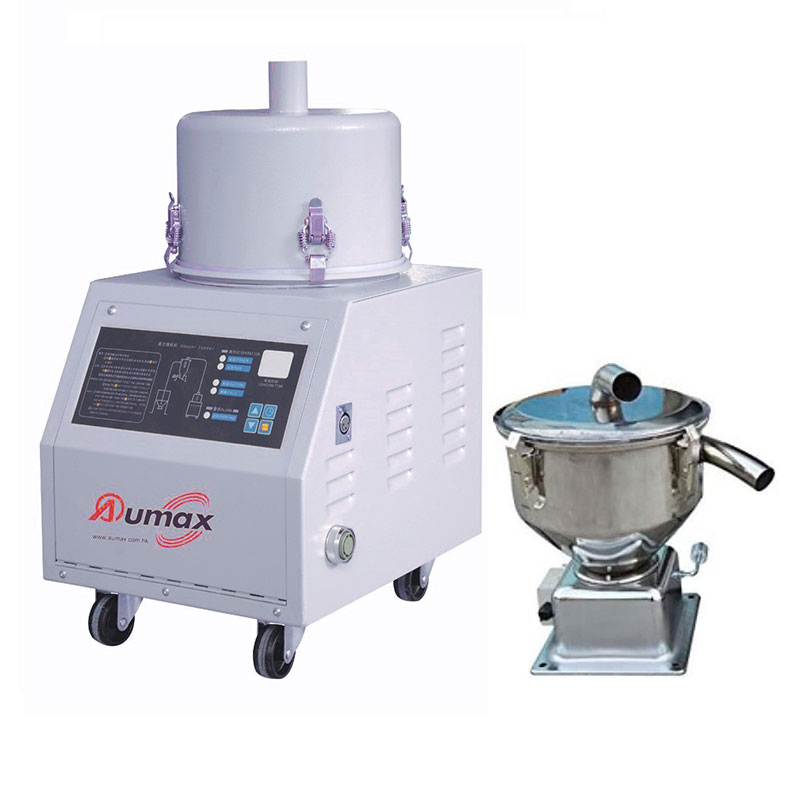

A separate vacuum hopper loader is a type of equipment used in plastic processing and material handling industries to transport plastic granules, pellets, or other bulk materials from a storage container (hopper) to processing machines, such as injection molding machines or extruders. The term "separate" indicates that the vacuum hopper loader is a standalone unit that operates independently from the processing machines.

Key features and components of a separate vacuum hopper loader include:

1. Hopper:

  - The hopper is a container used to store and hold the plastic material. It may have a specific capacity to accommodate a certain volume of material.

2. Conveying Hose:

  - The vacuum hopper loader is equipped with a conveying hose or tubing that connects the hopper to the processing machine. This hose is responsible for transporting the material from the hopper to the desired location.

3. Vacuum Pump:

  - A vacuum pump creates suction or vacuum pressure within the conveying hose, facilitating the transfer of plastic material from the hopper to the processing machine. The vacuum pump is a crucial component for the loader's functionality.

4. Control Panel:

  - A control panel allows operators to manage and monitor the operation of the vacuum hopper loader. It typically includes controls for starting and stopping the system, adjusting conveying parameters, and monitoring the material loading process.

5. Filter System:

  - To prevent dust and other contaminants from entering the processing machine, a filter system is often integrated into the vacuum hopper loader. This ensures that only clean material is conveyed to the machine.

6. Material Level Sensor:

  - Some vacuum hopper loaders are equipped with material level sensors in the hopper. These sensors provide feedback to the control system, helping to prevent overfilling or running the system with insufficient material.

7. Automatic Loading Sequence:

  - The vacuum hopper loader may feature an automatic loading sequence that can be programmed to start and stop the material loading process based on the needs of the processing machine.

8. Quick-Release Couplings:

  - Quick-release couplings facilitate easy and quick connections and disconnections of the conveying hose, allowing for efficient material changeovers or maintenance.

9. Dust Collection System (Optional):

  - In some cases, a dust collection system may be integrated to capture and contain dust generated during the material loading process, improving overall workplace cleanliness.

10. Mobile Design (Optional):

   - Some vacuum hopper loaders are designed with mobility features, such as wheels, allowing for easy relocation between different processing machines.

Separate vacuum hopper loaders are widely used in plastics processing industries to automate the material loading process, reduce manual handling, and ensure a consistent supply of plastic material to the processing machines. They are particularly valuable in applications where a central material conveying system may not be suitable or cost-effective.
