Applications of Slide Nuts and T-nuts

Slide nuts and T-nuts are specialized fastening components commonly used in CNC machining centers and other applications requiring secure attachment to T-slot tracks or extrusions. Here's a detailed look at each:

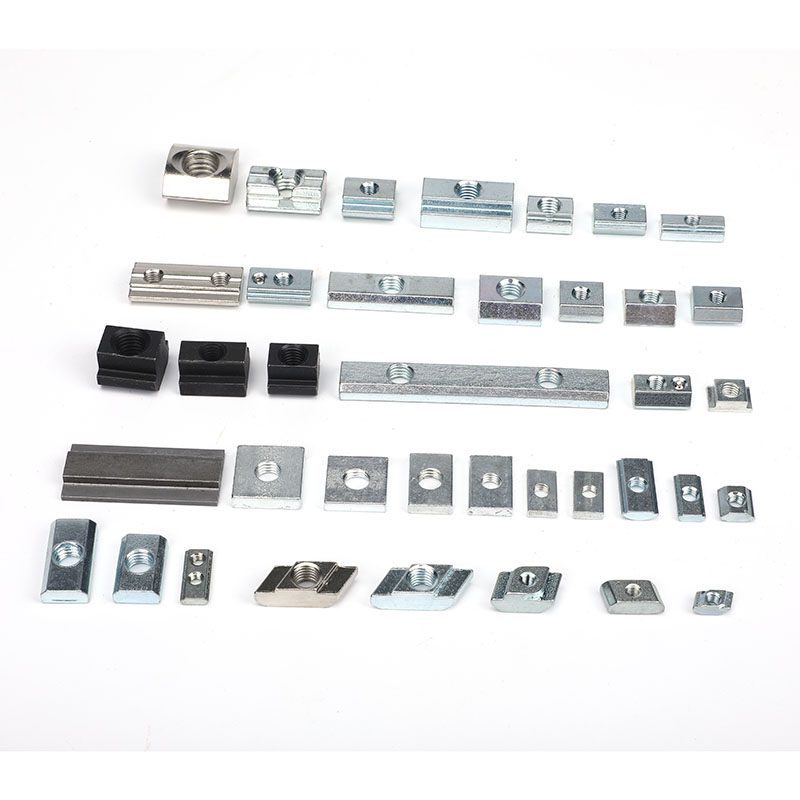

Slide Nuts

Description

Slide nuts, also known as sliding T-nuts or slot nuts, are designed to slide into T-slot tracks on machine tables, frames, or extrusions. They provide a versatile and adjustable way to attach fixtures, clamps, or other components.

Features

- Shape: Typically rectangular or square, with a threaded hole in the center for attaching bolts.

- Material: Often made from steel, stainless steel, or aluminum for durability and strength.

- Installation: Can be inserted into the T-slot track from the ends or by rotating them into place within the slot.

- Adjustment: Easily adjusted along the length of the T-slot to the desired position.

Applications

- CNC Machine Tables: Securing workpieces or fixtures.

- Extruded Aluminum Frames: Used in assembly of modular frames and structures.

- Automation Equipment: Attaching sensors, guards, or other accessories.

T-Nuts

Description

T-nuts, also known as Tee nuts or T-slot nuts, are specifically designed to fit into T-slot tracks. They provide a robust threaded anchor point for bolting components to machine tables or extrusions.

Features

- Shape: Shaped like a 'T', with a flat base that fits into the T-slot and a threaded barrel that protrudes above the surface.

- Material: Typically made from steel or stainless steel for high strength and wear resistance.

- Installation: Inserted into the T-slot by aligning the 'T' shape with the slot, then turned 90 degrees to lock into place.

- Secure Fit: The T-shape ensures a strong hold and prevents rotation under load.

Applications

- CNC Machine Tables: Mounting vises, stops, and other fixtures.

- Extruded Aluminum Profiles: Used in the construction of custom machinery, workstations, and enclosures.

- Woodworking: Often used in jigs and fixtures where a secure hold is needed.

Comparison and Selection

- Installation: Slide nuts offer easier adjustment along the T-slot without needing to remove other components, while T-nuts provide a more secure fit once installed.

- Strength: T-nuts generally provide a stronger and more stable anchor due to their locking mechanism.

- Versatility: Slide nuts are more versatile in terms of repositioning and adjustment.

- Application: Choose slide nuts for applications where frequent adjustment is required, and T-nuts for applications requiring a secure, fixed position.

Conclusion

Both slide nuts and T-nuts are essential components in CNC machining centers, providing flexibility and security in mounting and fixturing operations. Understanding their differences and applications helps in selecting the right type for specific needs, ensuring efficient and reliable setups in various industrial and manufacturing processes.
