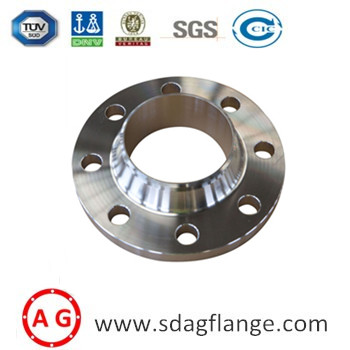

DIN2632 PN10 RF Weld Neck Flange: A Robust Connection for Carbon Steel Applications

Introduction

Flanges are crucial components in piping systems, providing a secure and leak-proof connection between pipes, valves, and other equipment. Among the various types available, DIN2632 PN10 RF Weld Neck Flanges stand out for their durability and reliability. Specifically designed for carbon steel applications, these flanges offer exceptional strength and sealing capabilities. In this blog post, we will explore the features and benefits of DIN2632 PN10 RF Weld Neck Flanges and their significance in carbon steel piping systems.

1. Robust Construction for Carbon Steel Applications

DIN2632 PN10 RF Weld Neck Flanges are manufactured specifically for use in carbon steel piping systems. Carbon steel is widely used in industrial applications due to its excellent strength and resistance to corrosion. The robust construction of these flanges complements the properties of carbon steel, ensuring a reliable connection that can withstand high pressure, temperature, and mechanical stress.

2. Weld Neck Design for Secure Connection

The weld neck design of DIN2632 PN10 RF Flanges provides a strong and secure connection. The flange has a tapered neck that is welded to the pipe, resulting in a smooth transition between the flange and the pipe itself. This design eliminates stress concentration points, reducing the risk of leakage and enhancing the overall structural integrity of the piping system. Weld neck flanges are particularly suitable for applications where high pressure and temperature conditions are present.

3. PN10 Pressure Rating for Versatile Applications

DIN2632 PN10 RF Weld Neck Flanges are rated for a pressure class of PN10, indicating their ability to withstand a maximum pressure of 10 bar (145 psi). This pressure rating makes them suitable for a wide range of applications, including water supply, chemical processing, oil and gas, and power generation. The PN10 rating ensures that the flanges can handle moderate to high-pressure environments, providing a reliable and safe connection.

4. Raised Face for Enhanced Sealing

The DIN2632 PN10 RF Flanges feature a raised face on the flange's sealing surface. The raised face provides additional contact area, ensuring a tight seal between the flange and the mating component (such as a gasket or another flange). This design minimizes the risk of leaks, preventing the escape of fluids or gases and maintaining the integrity of the piping system.

5. Corrosion Resistance and Durability

Carbon steel DIN2632 PN10 RF Weld Neck Flanges can be coated or treated to enhance their corrosion resistance. Various protective coatings, such as epoxy or zinc, can be applied to the flanges to prevent corrosion and extend their lifespan. Additionally, the inherent strength and durability of carbon steel make these flanges highly reliable and long-lasting, minimizing the need for frequent maintenance or replacement.

6. Easy Installation and Maintenance

DIN2632 PN10 RF Weld Neck Flanges are designed for straightforward installation and maintenance. The weld neck connection allows for easy alignment and welding to the pipe, ensuring a secure and leak-proof joint. The raised face design simplifies gasket installation and replacement. Additionally, the robust nature of these flanges reduces the need for frequent maintenance, contributing to the overall efficiency and cost-effectiveness of the piping system.

Conclusion

DIN2632 PN10 RF Weld Neck Flanges provide a durable and reliable connection for carbon steel piping systems. Their robust construction, weld neck design, and PN10 pressure rating make them well-suited for high-pressure and temperature applications. The raised face design enhances sealing capabilities, ensuring a tight and leak-free connection. With their corrosion resistance, durability, and ease of installation, DIN2632 PN10 RF Weld Neck Flanges offer a long-lasting solution that can withstand the demands of industrial environments.
